cromox® stainless steel weld-on lifting points (inox)

Weld-on lifting points are an ideal solution for lifting heavy loads. When welded correctly, they are permanently connected to the load and, thanks to their high resistance to corrosion, they are reliable and durable. To meet the specific requirements of your projects, they are available in various sizes and capacities.

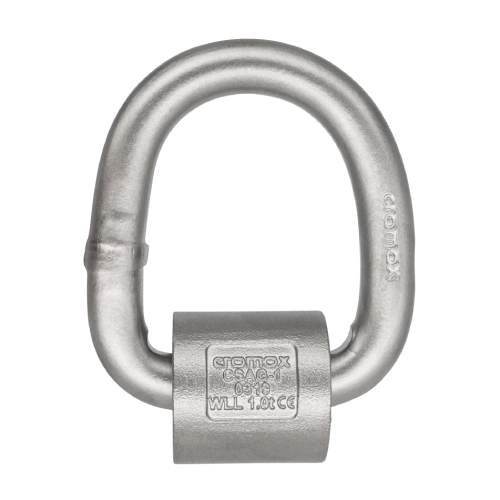

Product depiction of a premium weld-on lifting point

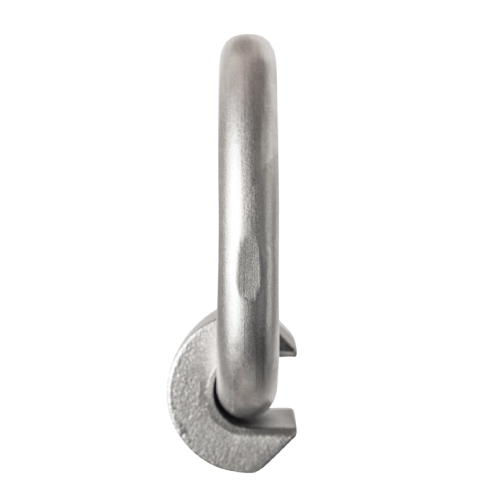

Detailed display of a weldable attachment point

High load-bearing capacity with maximum safety

Our stainless steel weld-on lifting points are made of selected stainless steel and are (due to correct welding processes) a permanent connection to the load.

In many areas of application, this is crucial for safety and efficiency in lifting and moving loads. The shackle of our weld-on lifting points is made of high-strength stainless steel 1.4462 Duplex (AISI 318LN), the welding blocks from stainless steel 1.4404 (AISI 316L). Both materials are highly resistant to corrosion and oxidation. Benefit from our long-standing experience and the advantages of a reliable product that meets the highest quality standards (Grade 60, type tested according to EN 1677-1).

We are a qualified member of the renowned professional association LEEA. Through this association, the safety of an entire industry and thus also our own standards are constantly driven forward.

All our products are tested in our in-house Lloyd's Register-certified testing facility in accordance with international standards. The facility has a load capacity of up to 160 tons.

cromox® Weld-on Lifting Points CSAG, Grade 60
blasted

Type	WLL (t)	Dimensions (mm)						Weight (kg, approx.)
		a	c	e	d	b	t
CSAG-05	0,50	35,0	33	25	8	28,0	57,0	0,125
CSAG-1	1,00	47,5	45	35	10	35,0	78,5	0,280
CSAG-2	2,00	61,0	60	50	16	50,0	99,0	0,700
CSAG-3	3,00	74,5	70	56	18	57,0	117,0	1,280
CSAG-5	5,00	87,0	81	65	22	67,5	138,0	2,140
CSAG-8	8,00	100,0	93	75	26	80,0	161,0	3,560
CSAG-10	10,00	110,0	105	85	32	98,0	183,0	6,000

Material
D-ring		AISI 318LN Duplex
Weld-on block		AISI 316L

Buy now

Relying on stainless steel

When heavy loads need to be moved reliably and safely, the connecting elements must be robust, withstand high loads, and be made of a material you can trust. Stainless steel is known for its durability and robustness. It is corrosion-resistant, as well as heat and cold resistant. Furthermore, stainless steel is hygienic and easy to clean, reinforcing the benefits of its use in areas where cleanliness is of utmost importance. Thus, this material is ideal for manufacturing high-quality weld-on lifting points.

Load-bearing capacity of weld-on lifting points made of stainless steel

The load-bearing capacity of weld-on lifting points made of stainless steel depends on the strength and quality of the material used and the welding techniques used to connect these components. Our high-quality weld-on lifting points are designed for various welding processes to ensure maximum safety and efficiency. The load-bearing capacities of our weld-on lifting points range from 0.5 tonnes (CSAG-05) to 10 tonnes (CSAG-10).

Weld-on lifting points – a connection that lives up to its promise

Stainless steel weld-on lifting points are a safe and efficient solution for various industrial applications. Welded firmly to the load, they ensure the best durability and are also highly corrosion-resistant – two major plus points in terms of safety and reliability.
