Buy stainless steel ULTRA Bow Roller online ► cromox®

Anchor kg/lbs	5/11	8/18	12/26	16/35	21/46	27/60	35/77	45/100	60/132	80/176	100/220	130/290	160/350	200/440
A	15.62	18.27	20.91	23.02	25.19	27.4	29.89	32.48	35.75	39.15	42.4	46.26	49.58	53.4
B	13.47	15.76	18.04	19.85	21.72	23.63	25.75	28.02	29.06	33.94	36.96	39.91	42.76	46.07
C	14.74	17.24	19.74	21.73	23.78	25.87	28.22	30.66	33.75	37.14	40.02	43.68	46.8	50.42
D	2.17	2.54	2.91	3.2	3.51	3.81	4.16	4.52	4.98	5.48	5.9	6.44	6.9	7.43
E	1.99	2.33	2.67	2.93	3.21	3.49	3.81	4.14	4.56	5.01	5.4	5.89	6.31	6.8
K	5.56	6.5	7.44	8.19	8.96	9.74	10.63	11.55	12.71	13.99	15.08	16.45	17.63	19
L (*)	21.1	22.56	25.83	28.39	31.1	33.82	36.89	40.08	44.13	48.58	52.32	57.09	61.22	65.94
t	.12	.16	.16	.16	.20	.20	.24	.24	.24	.30	.30	.30	.39	.39

Anchor kg/lbs	5/11	8/18	12/26	16/35	21/46	27/60	35/77
A	15.62	18.27	20.91	23.02	25.19	27.4	29.89
B	13.47	15.76	18.04	19.85	21.72	23.63	25.75
C	14.74	17.24	19.74	21.73	23.78	25.87	28.22
D	2.17	2.54	2.91	3.2	3.51	3.81	4.16
E	1.99	2.33	2.67	2.93	3.21	3.49	3.81
K	5.56	6.5	7.44	8.19	8.96	9.74	10.63
L (*)	21.1	22.56	25.83	28.39	31.1	33.82	36.89
t	.12	.16	.16	.16	.20	.20	.24

Anchor kg/lbs	45/100	60/132	80/176	100/220	130/290	160/350	200/440
A	32.48	35.75	39.15	42.4	46.26	49.58	53.4
B	28.02	29.06	33.94	36.96	39.91	42.76	46.07
C	30.66	33.75	37.14	40.02	43.68	46.8	50.42
D	4.52	4.98	5.48	5.9	6.44	6.9	7.43
E	4.14	4.56	5.01	5.4	5.89	6.31	6.8
K	11.55	12.71	13.99	15.08	16.45	17.63	19
L (*)	40.08	44.13	48.58	52.32	57.09	61.22	65.94
t	.24	.24	.30	.30	.30	.39	.39

Notes

All measurements in inches.
If dimension “A” or “B” is given together with the order by the customer, it can be manufactured in different lengths.
The bow roller chassis is either manufactured without holes (drilled by the customer) or with holes if dimensions “G, H, I, J” are given with the order.
(*) “L” is the approximate dimension given for the current drawing; it varies with car movements.
We reserve the right to make changes to design and measurements.

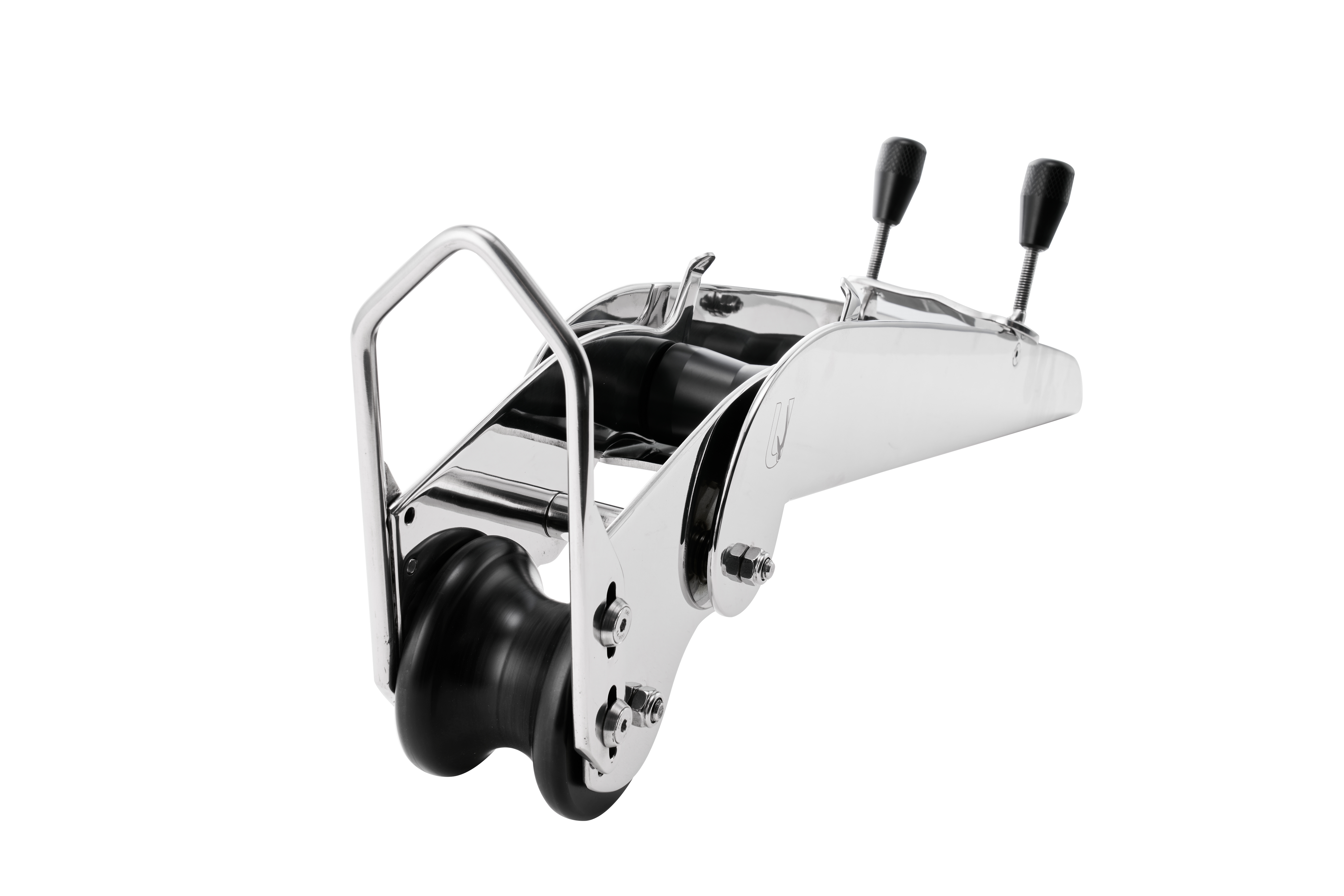

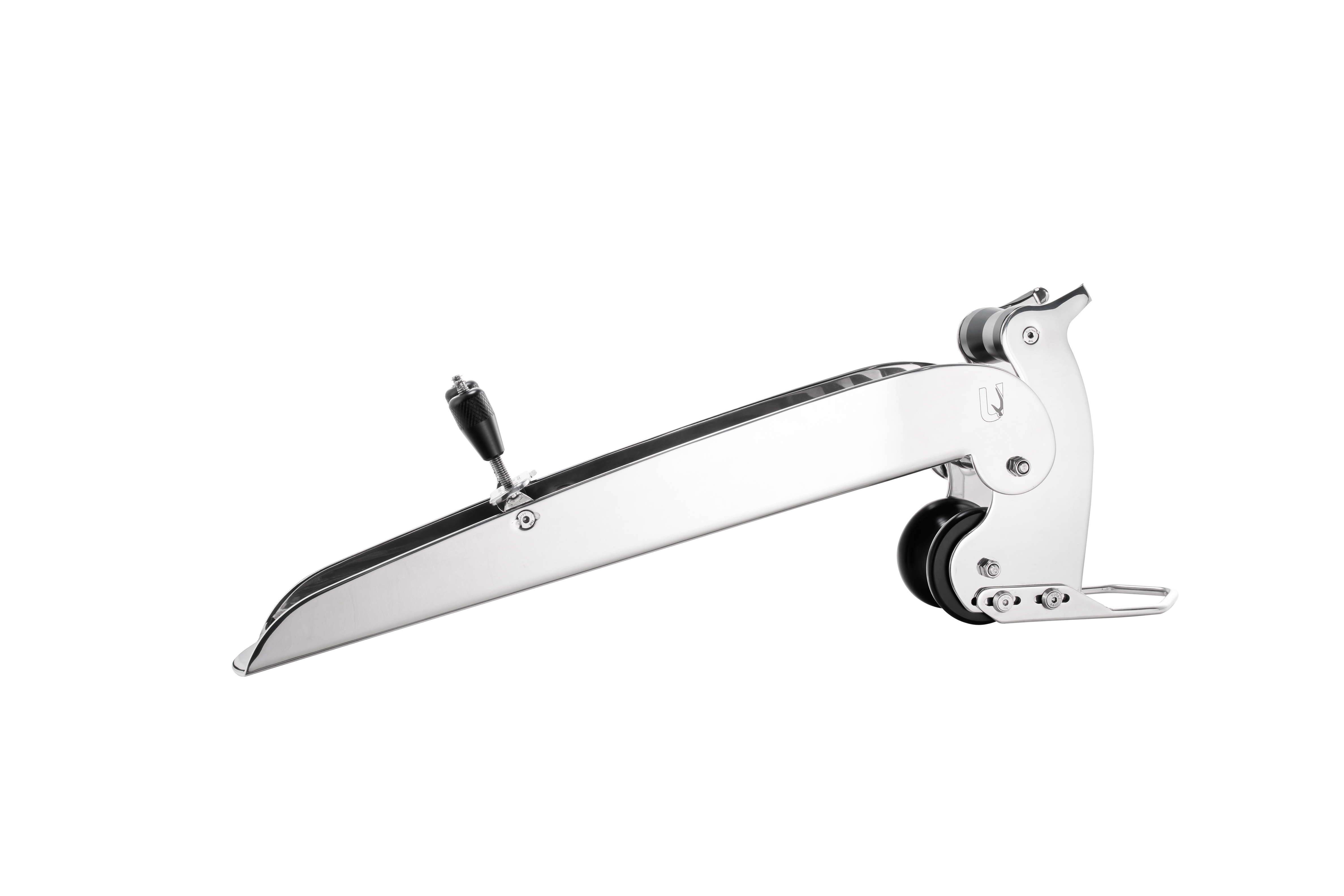

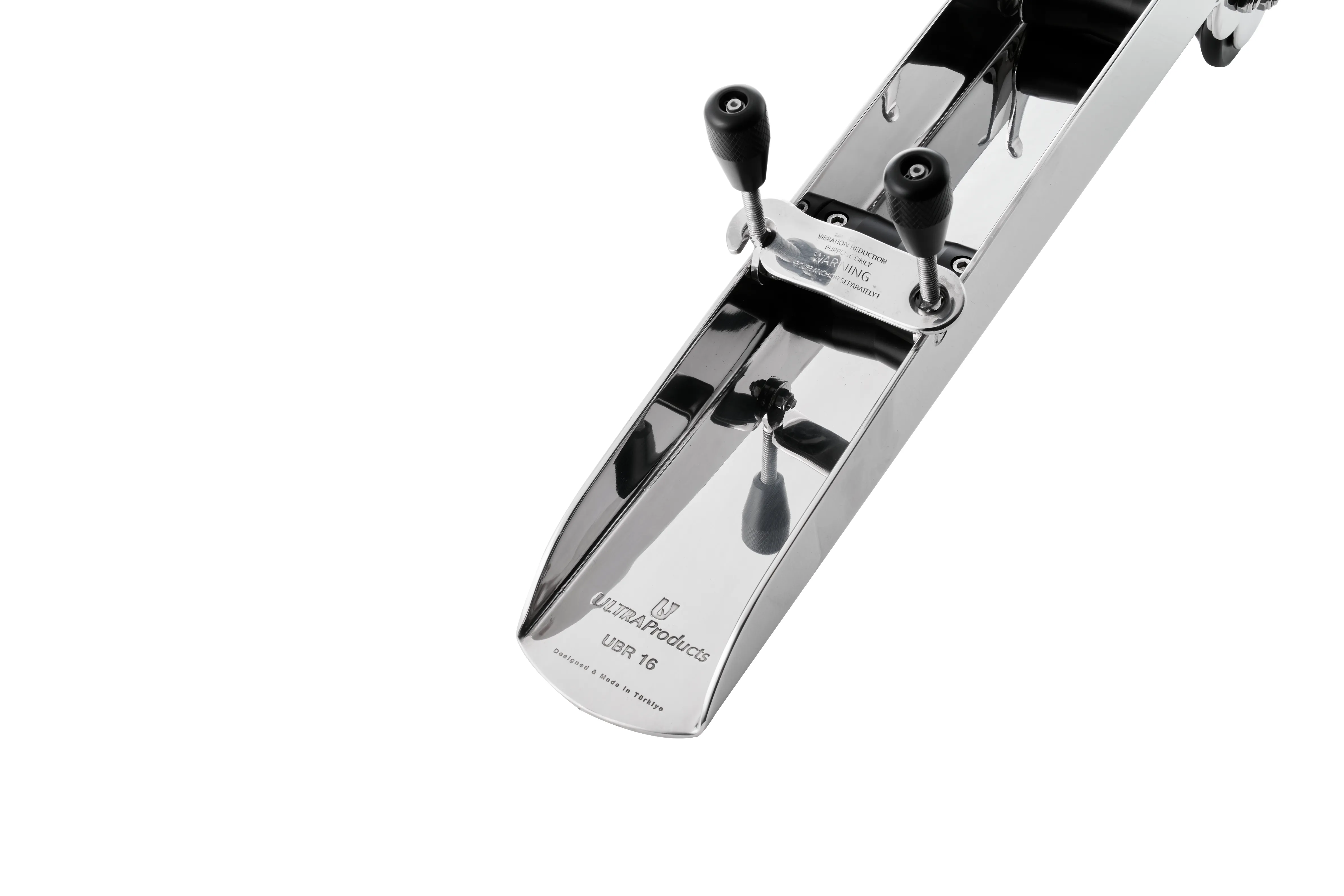

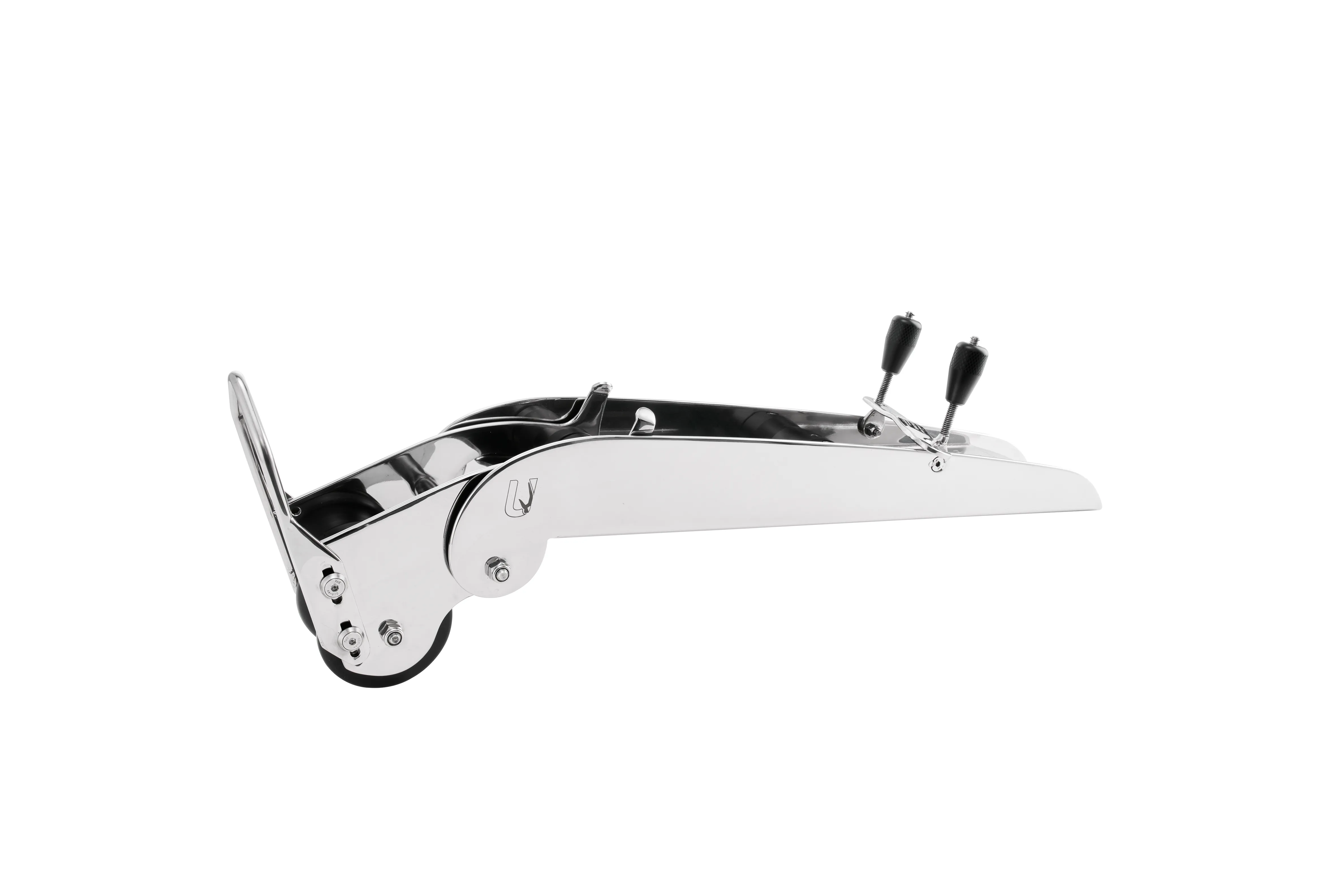

ULTRA Bow Roller
