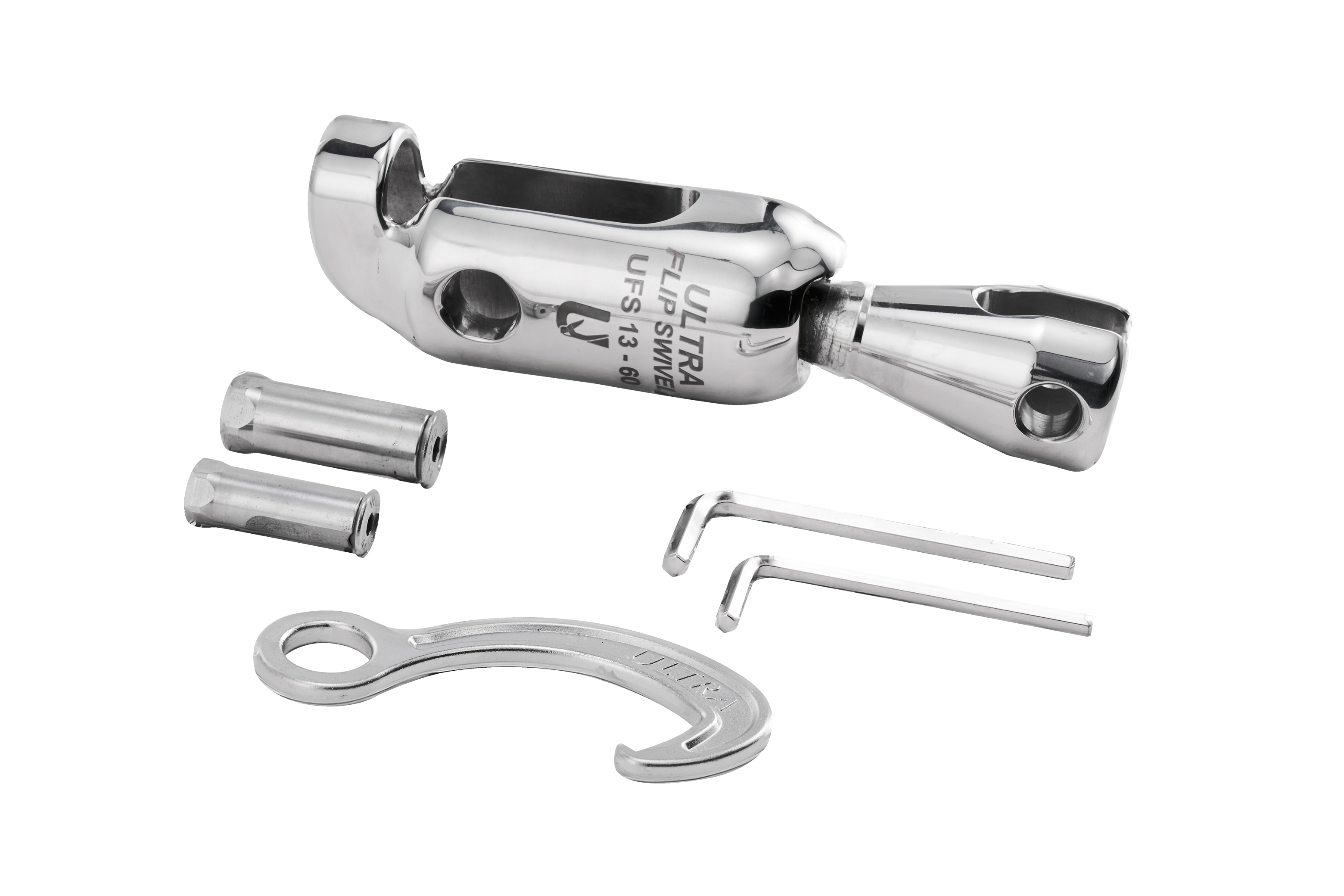

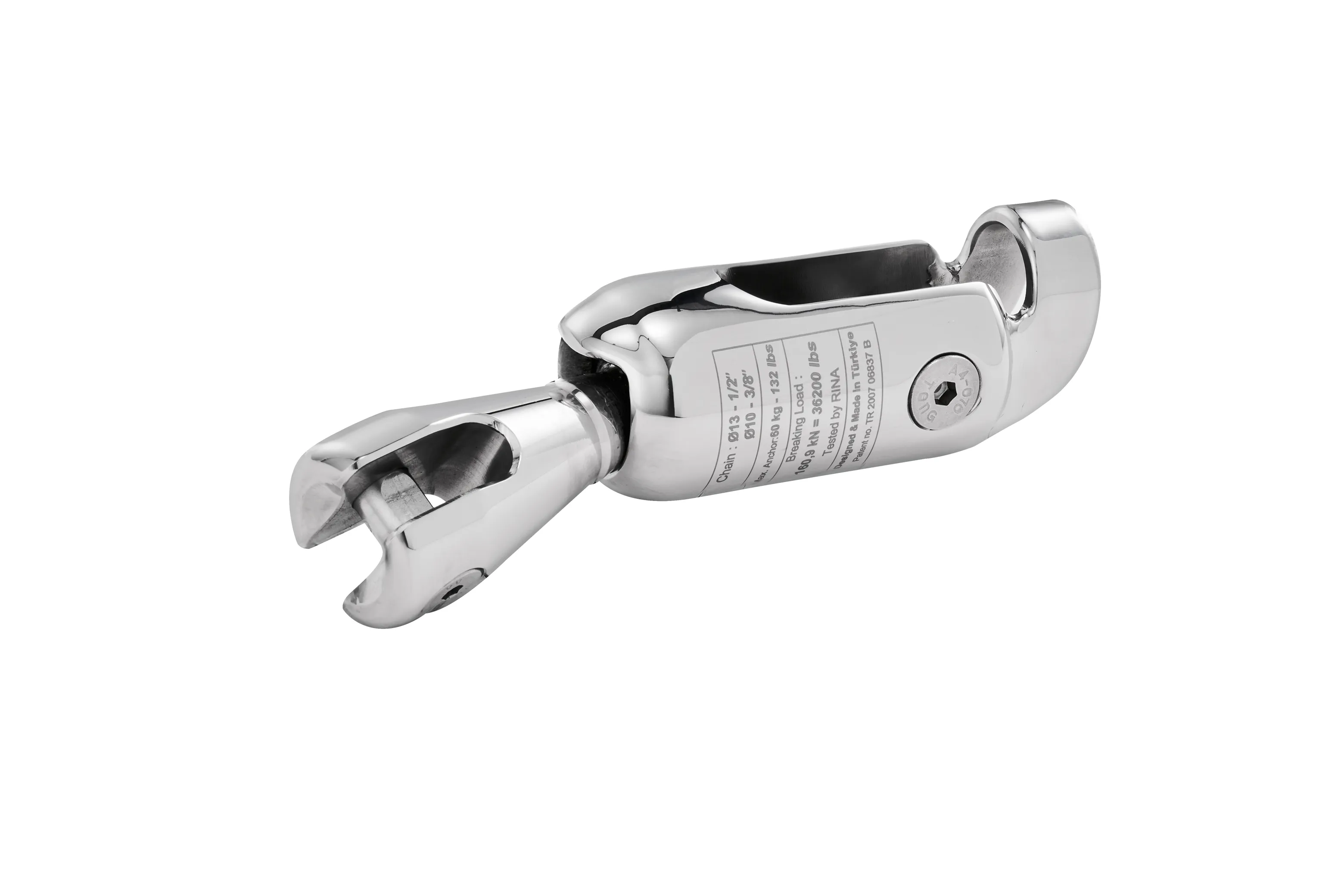

ULTRA Flip Swivel

€329.63

Available, delivery time: approx. 1 week

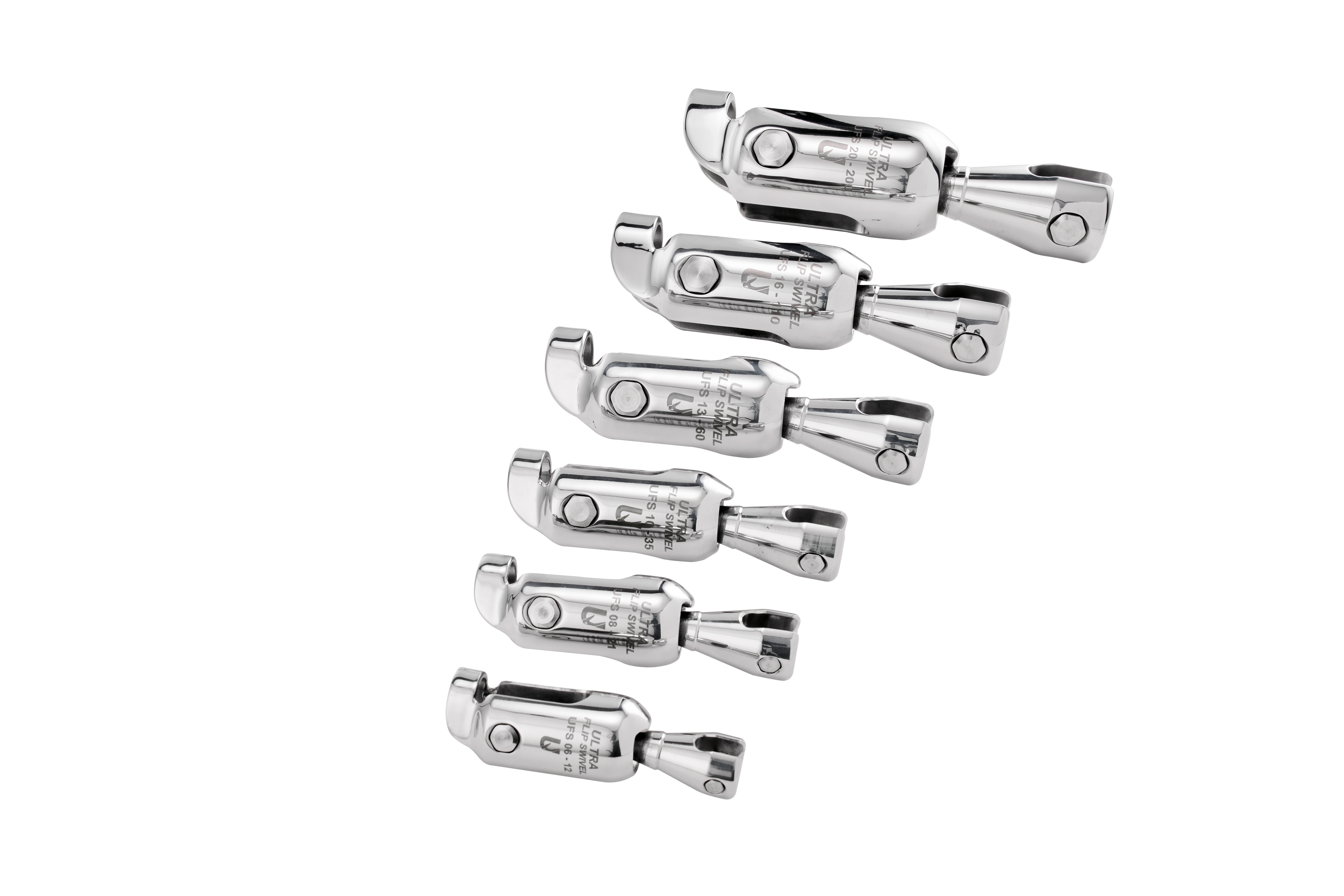

Size

UFS-6/12

UFS-8/21

UFS-10/35

UFS-13/60

UFS-16/110

UFS-20/200

Product number: 902810

Type	Chain Diameter (*)		Whole Length Approx.	Chain Side Dimensions	Anchor Side Dimensions	Flip Bridge Dimensions		Breaking Load		Maximum Anchor Weight
Type	(mm)	(inch)	A (mm)	b–c–d–e–f (mm)	B–C–D–E–F (mm)	G (mm)	H (mm)	(kN)	(lbf)	(kg)	(lbs)
UFS 6-12	6	1/4"	121	25×7,6×7×9×11	35×16×11×13×31	14	17	38,4	8640	12	26
UFS 8-21	6–8	1/4"–5/16"	147,5	30×9,4×9×11×14,5	40×19×13×16×36,5	18,5	20	56,7	12740	21	46
UFS 10-35	8–10	5/16"–3/8"	168	35×11,6×11×13×17	45×21×14,5×18×40	21	22,5	90,7	20400	35	77
UFS 13-60	10–12–13	3/8"–1/2"	211,5	45×15,2×14,5×16,5×23	55×26×18×23×51,5	26,5	30	160,9	36200	60	132
UFS 16-110	12–13–14–16	1/2"–5/8"	250	53×18,2×18×20×27	65×31×22×27×59	33	36	236,5	53200	110	242
UFS 20-200	16–18–20	5/8"–3/4"	309	65×23×22×26×34	85×40×26×32×72	40	40,5	321,5	72300	200	440
UFS 26-360	20–23–26	3/4"–1"	364	85×30×26×33×43	110×52×32×40×77	48	56	474,8	106700	360	793
UFS 32-600	26–30–32	1"–1 1/4"	475	110×38×32×43×55	140×66×40×52×99	68	60	~726	~163047	600	1320

Type	Chain Diameter (*)		Whole Length Approx.	Chain Side Dimensions
Type	(mm)	(inch)	A (mm)	b–c–d–e–f (mm)
UFS 6-12	6	1/4"	121	25×7,6×7×9×11
UFS 8-21	6–8	1/4"–5/16"	147,5	30×9,4×9×11×14,5
UFS 10-35	8–10	5/16"–3/8"	168	35×11,6×11×13×17
UFS 13-60	10–12–13	3/8"–1/2"	211,5	45×15,2×14,5×16,5×23
UFS 16-110	12–13–14–16	1/2"–5/8"	250	53×18,2×18×20×27
UFS 20-200	16–18–20	5/8"–3/4"	309	65×23×22×26×34
UFS 26-360	20–23–26	3/4"–1"	364	85×30×26×33×43
UFS 32-600	26–30–32	1"–1 1/4"	475	110×38×32×43×55

Type	Anchor Side Dimensions	Flip Bridge Dimensions		Breaking Load		Maximum Anchor Weight
Type	B–C–D–E–F (mm)	G (mm)	H (mm)	(kN)	(lbf)	(kg)	(lbs)
UFS 6-12	35×16×11×13×31	14	17	38,4	8640	12	26
UFS 8-21	40×19×13×16×36,5	18,5	20	56,7	12740	21	46
UFS 10-35	45×21×14,5×18×40	21	22,5	90,7	20400	35	77
UFS 13-60	55×26×18×23×51,5	26,5	30	160,9	36200	60	132
UFS 16-110	65×31×22×27×59	33	36	236,5	53200	110	242
UFS 20-200	85×40×26×32×72	40	40,5	321,5	72300	200	440
UFS 26-360	110×52×32×40×77	48	56	474,8	106700	360	793
UFS 32-600	140×66×40×52×99	68	60	~726	~163047	600	1320

Notes

UFS selection should be based on the “Max. Anchor Weight”. If it’s not enough, a bigger UFS must be selected.
One size bigger UFS can also be used with the same chain (e.g. Grade 70 / G7).
Since the swivel wears out, the warranty period is limited to 5 years. Perform visual wear checks at least once a year.
Tested by RINA (except UFS 32-600). Safe Working Load = 0,5 × Breaking Load.
(*): Diameters are for the standard and one size smaller chains that can normally be connected. For even smaller chains: attach a larger end link, or order a modified swivel (e.g. UFS 20/12-200).

Product information "ULTRA Flip Swivel"

ULTRA Flip Swivel UFS-6/12

for size Ø6mm chain (Max. 12 kg Anchor)

Customs Tariff Number

Weight:	Weight information is currently unavailable.
